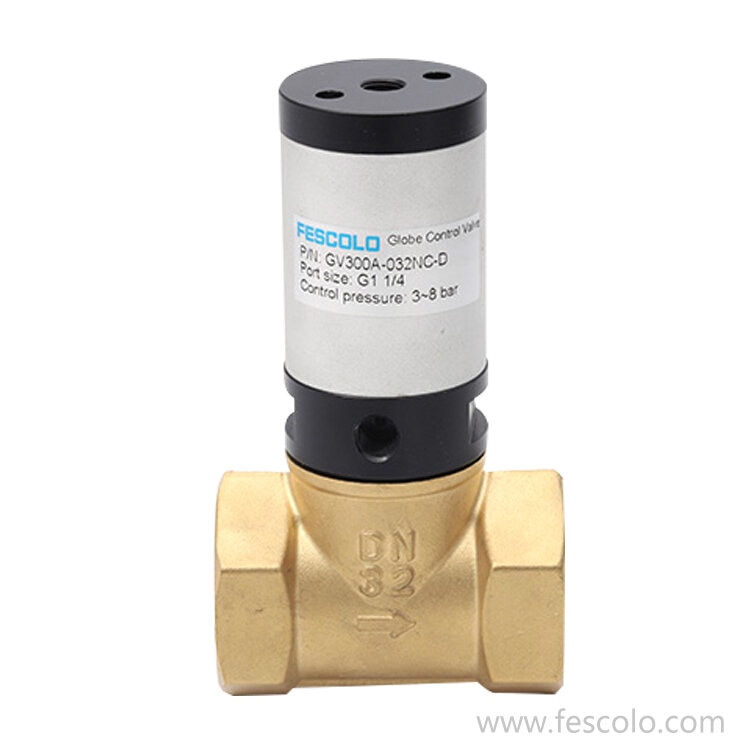

Q22HD Series of Pneumatic Control Valves

Q22HD Series of Pneumatic Control Valves


Features:

◆ The protection rating of this series solenoid valve is IP65.


◆ Modes of operation: Direct drive and pilot-operated.


◆ Pressure unit: 1 kgf/cm² = 1 bar = 0.1 MPa = 100 kPa = 14.5 psi.


◆ The working temperature of PTFE or PTFE materials can reach -20℃ to 169℃.


◆ Different thread types, such as PT, NPT, etc., can be provided according to customer requirements.



Inquire Now

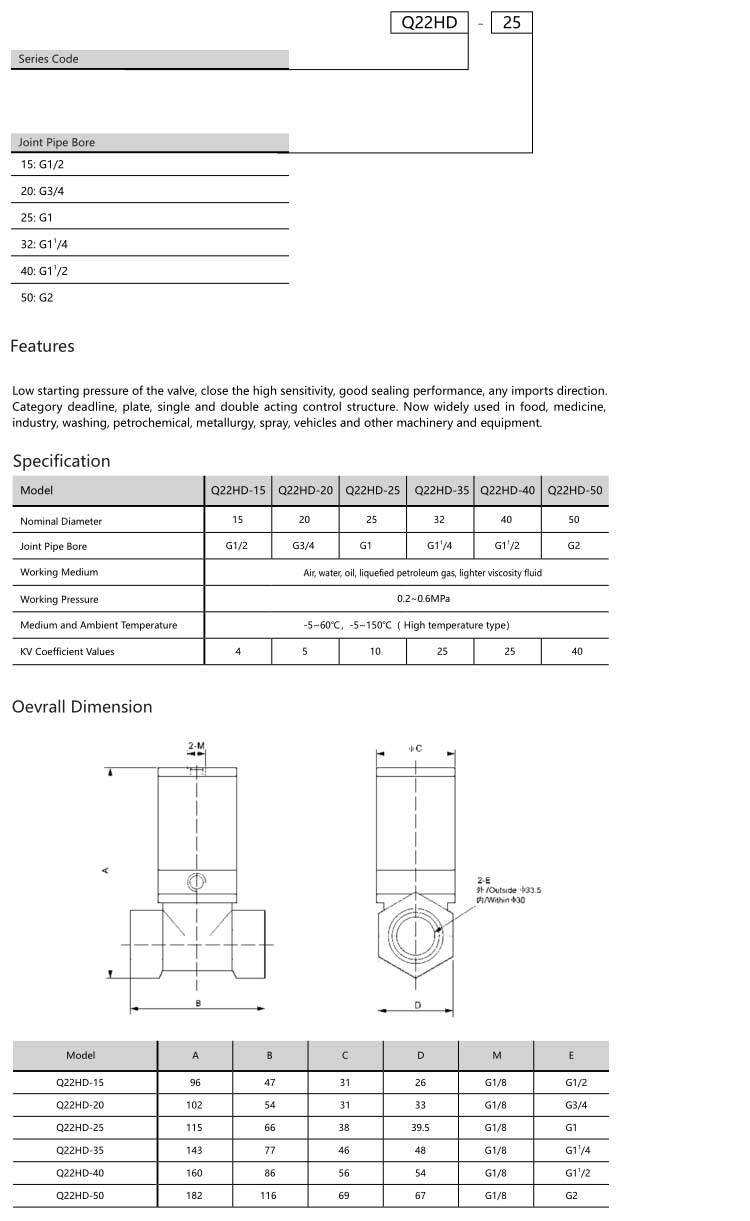

  • Dimension
  • Details

Q22HD Series of Pneumatic Control Valves
