Specification
| Material | Polyurethane flame-resistant |
| Applicable medium | Air |
| Embient and fluid temperature | -20°C~+80C |
| Flame retardant grade | 95A ASTM D-2240 |
| Application | 600 ASTM D-638 |

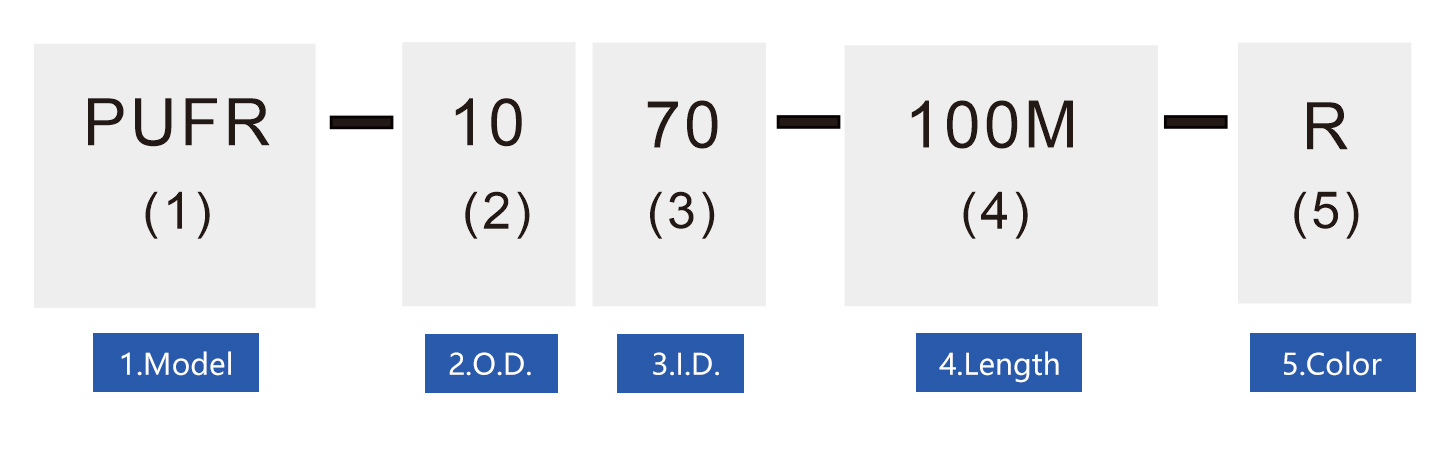

Ordering code
ITEM | Metric Dimension | ||||
PUFR0425 | PUFR0640 | PUFR0855 | PUFR1070 | PUFRI280 | |
| I.D.(mm) | 2.5 | 4.0 | 5.5 | 7.0 | 8 |
| O.D.(mm) | 4.0 | 6.0 | 8 | 10.0 | 12.0 |
Bevelling Radius (mm) | 10 | 15 | 20.0 | 25.0 | 35 |
