Characteristic
◆ Resists abrasion and impact
◆ Resists oil and many chemicals with no erosive nature
◆ Long working life
◆ Precise size and wall uniform
◆ With excellent flexibility and restoring force
Specification

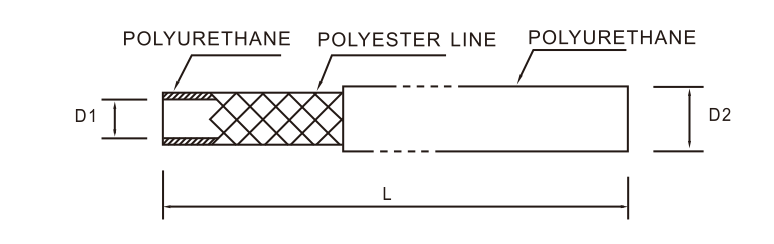

Material | Polyurethane braided with Textile |
Applicable medium | Air, Water, Vacuum |
Embient and fluid temperature | -20℃~+80℃ |
Hardness Shore A | 85A/90A ASTM D-2240 |
Tensile strength(kg/cm2) | 500 ASTM D-638 |
Ultimate elongation(%) | 590~690 ASTM D-638 |
Taber abrasion(mg) | 30~40 ASTM D-1044 |
Tear strength(kg/cm2) | 115 ASTM D-732 |

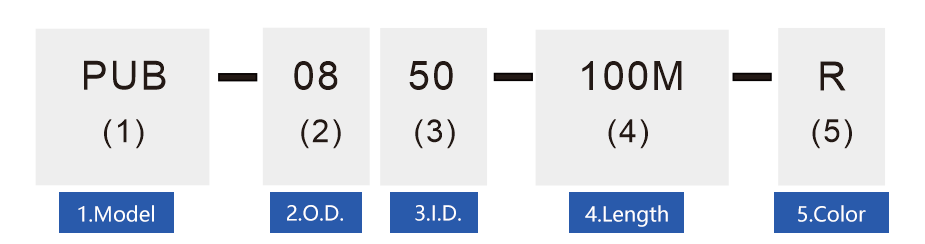

ITEM | D1 | D2 | L | Net weight (kg/Roll) | MAX.working pressure at 20℃ (bar) | Burst.working pressure at 20℃ (bar) | MAX.bend radius at 20℃ (mm) |
PUB-0850 | 5mm | 8mm | 100m | 3.8 | 20bar | 60bar | 20mm |
PUB-1065 | 6.5mm | 10mm | 100m | 5.6 | 20bar | 60bar | 30mm |
PUB-1280 | 8mm | 12mm | 100m | 7.8 | 20bar | 60bar | 40mm |
PUB-1410 | 10mm | 14mm | 100m | 9.5 | 20bar | 60bar | 60mm |
PUB-1612 | 12mm | 16mm | 100m | 11 | 20bar | 60bar | 75mm |
PUB-3/8 | 6.35mm | 9.5mm | 100m | 4.9 | 20bar | 60bar | 30mm |
PUB-1/2 | 8.46mm | 12.7mm | 100m | 8.8 | 20bar | 60bar | 40mm |
