Characteristic
◆Odorless,Tasteless,Non-toxic
◆Resists many chemicals with no erosive nature
◆Long working life
◆Suitable for water and drinking water
◆FDA approved
Specification
Material | Polyethylene (PE) |
Applicable medium | Air, Water |
Embient and fluid temperature | -20℃~+60℃ |

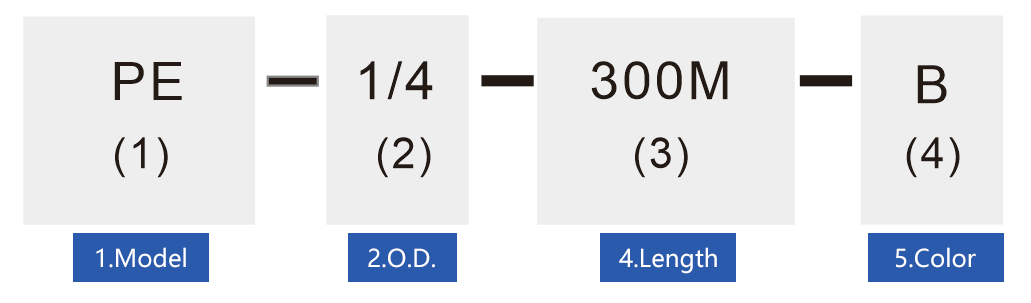

Ordering code
\

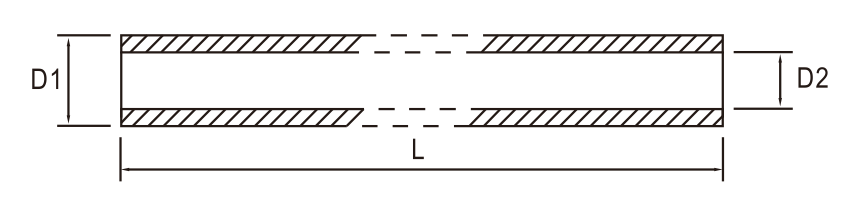

ITEM | DI | D2 | L | Net weight (kg/Roll) | MAX.working pressure at 20℃ (bar) | MAX.burst pressure at 20℃ (bar) |
PE-0425 | 4mm | 2.5mm | 200m | 137 | 8bar | 24bar |
PE-0640 | 6mm | 4mm | 200m | 28 | 8bar | 24bar |
PE-0850 | 8mm | 5mm | 100m | 1.97 | 8bar | 24bar |
PE-1075 | 10mm | 7.5mm | 100m | 3.6 | 8bar | 24bar |
PE-1290 | 12mm | 9mm | 100m | 4.4 | 8bar | 24bar |
PE-1/4 | 6.35mm | 4.23mm | 100&300m | 1.54&4.62 | 8bar | 24bar |
PE-3/8 | 9.52mm | 6.35mm | 100m | 3.55 | 8bar | 24bar |
PE-1/2 | 12.7mm | 9.5mm | 100m | 5 | 8bar | 24bar |
