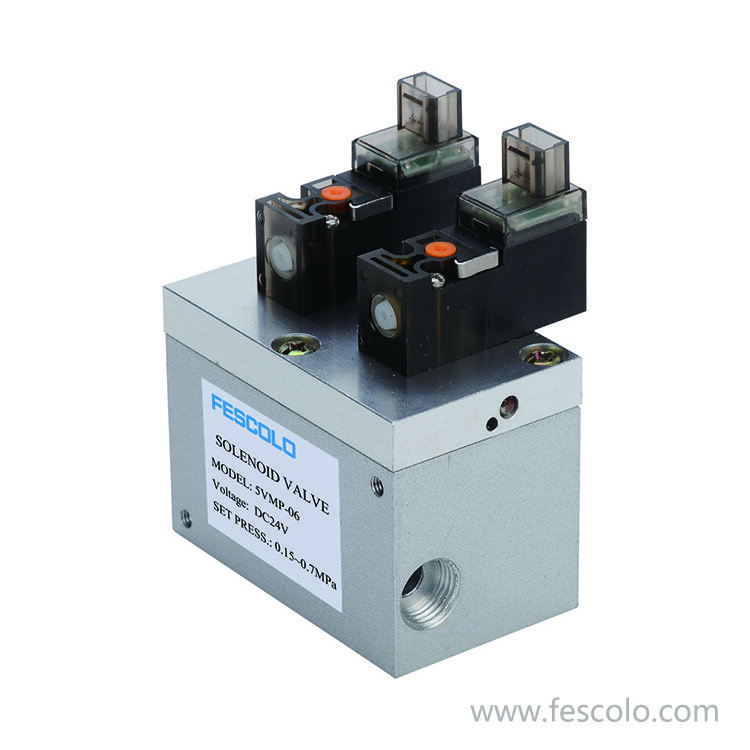

5VMP Series Solenoid Valve

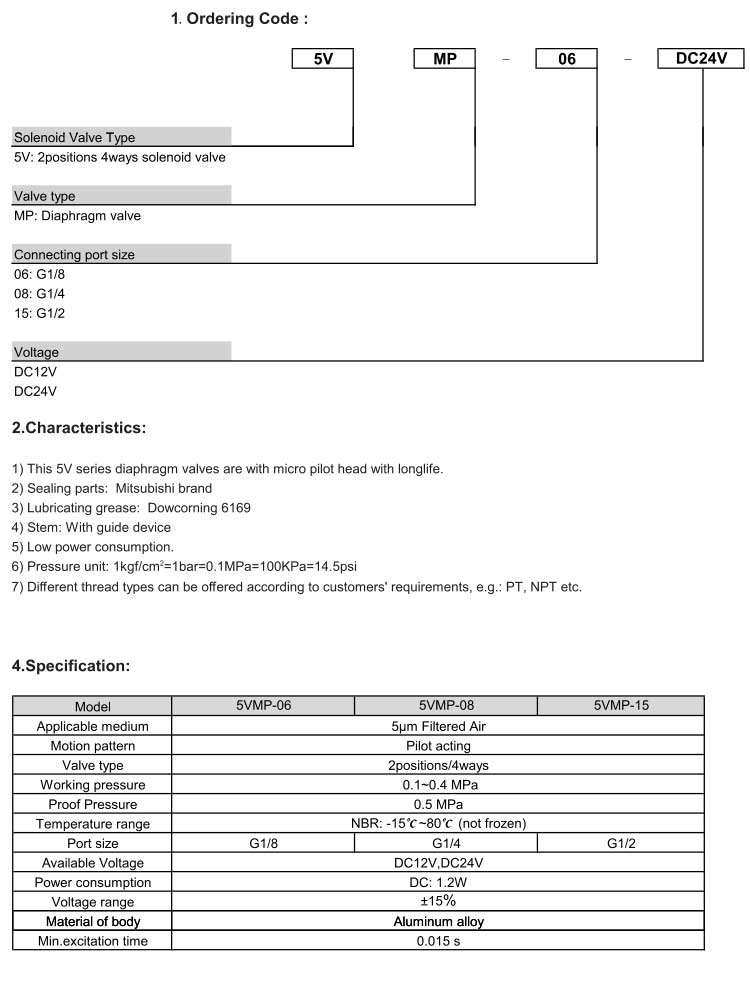

Features:

◆ The 5V series diaphragm valve uses a miniature pilot valve head for long service life.

◆ Seals: Mitsubishi brand.

◆ Lubricant: Dowcorning 6169.

◆ Valve stem: Equipped with a guide device.

◆ Low power consumption.

◆ Pressure units: 1 kgf/cm² = 1 bar = 0.1 MPa = 100 kPa = 14.5 psi.

◆ Different thread types, such as PT, NPT, etc., can be provided according to customer requirements.

The 5VMP Series Solenoid Valve is a compact and high-performance pneumatic control component used for directing compressed air in automation systems. It is available in 2-position/3-way or 2-position/5-way configurations, offering flexible solutions for a wide range of control needs.

This series features a low-power consumption coil design, which helps to improve energy efficiency in long-term operation. With fast response time, modular structure, and high sealing reliability, the 5VMP valve is ideal for use in space-limited applications such as electronics assembly, robotics, and precision machinery.

Inquire Now

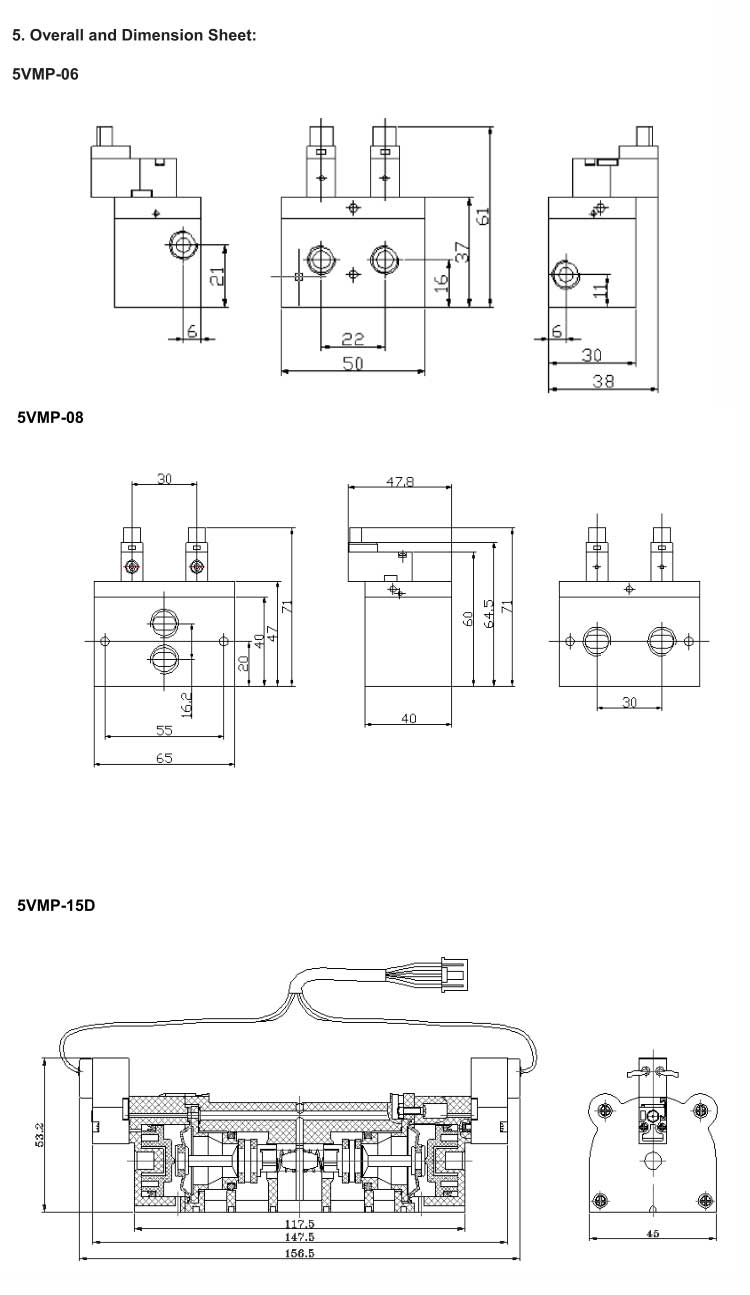

Dimension
Details

5VMP Series Solenoid Valve
