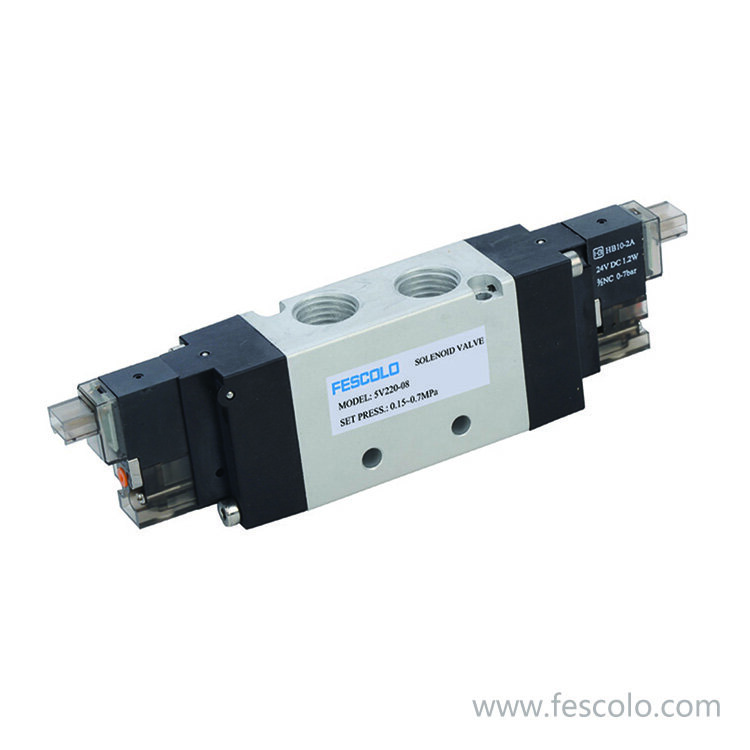

5V3120,5V3220,5V5120,5V5220 Series Solenoid Valve

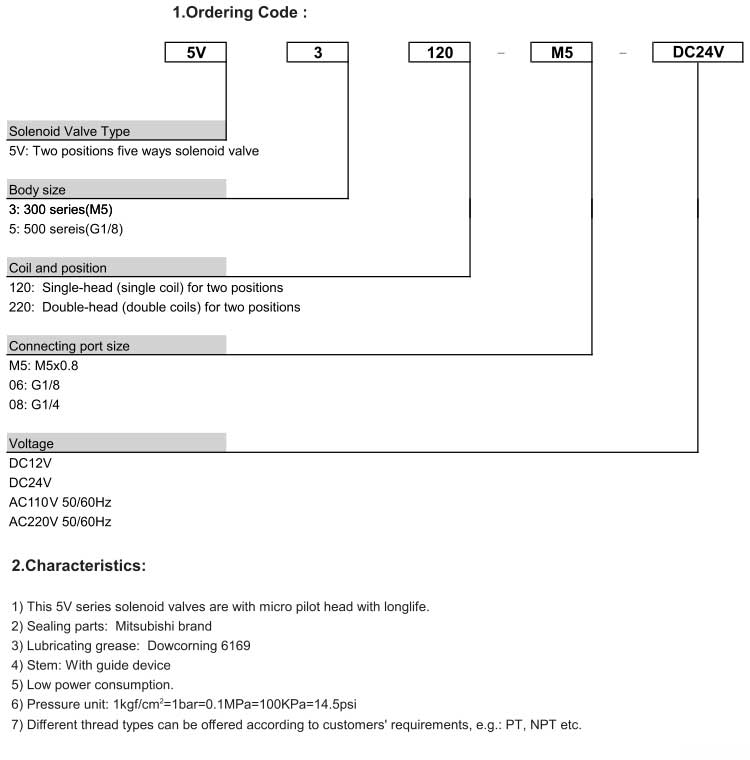

Features:

◆ The 5V series solenoid valve uses a miniature pilot valve head for extended service life.

◆ Seals: Mitsubishi brand.

◆ Lubricant: Dowcorning 6169.

◆ Valve stem: Equipped with a guide device.

◆ Low power consumption.

◆ Pressure units: 1 kgf/cm² = 1 bar = 0.1 MPa = 100 kPa = 14.5 psi.

◆ Different thread types, such as PT, NPT, etc., can be provided according to customer requirements.

5V3120, 5V3220, 5V5120, 5V5220 Series Solenoid Valve is a type of Pneumatic Solenoid Valve designed for controlling the direction of compressed air in pneumatic systems. These valves typically feature 5 ports and 2 positions, making them ideal for operating double-acting cylinders and other pneumatic actuators.

This series stands out for its stable performance, fast switching response, and long service life. With a compact body and various port sizes, the 5V series is widely used in automated machinery, packaging equipment, and industrial automation systems where reliable and efficient air control is required.

Inquire Now

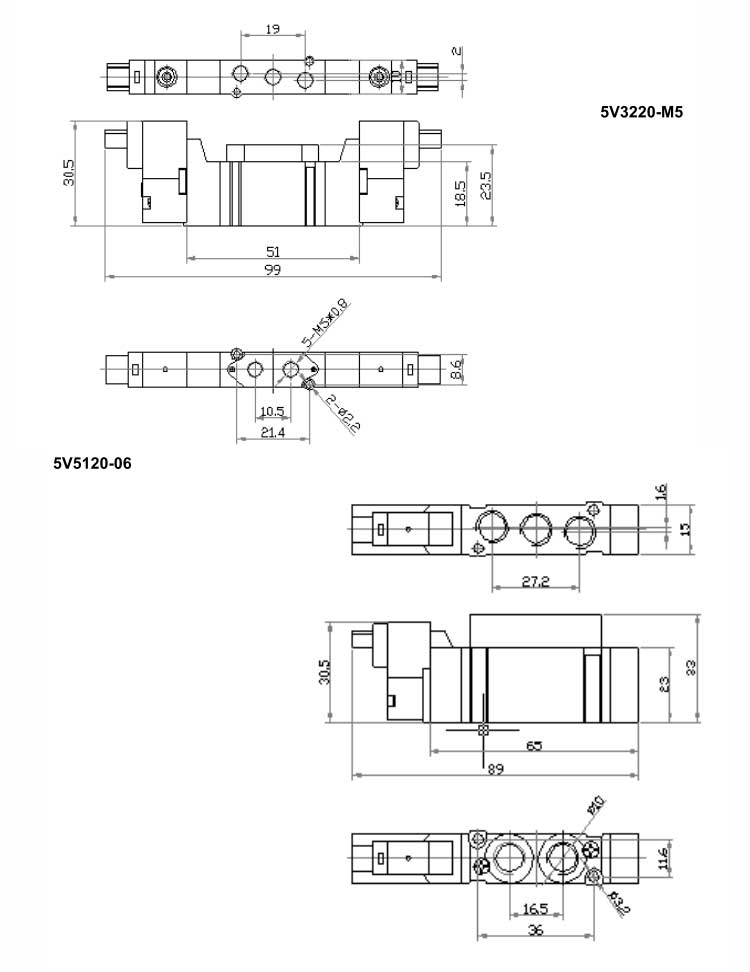

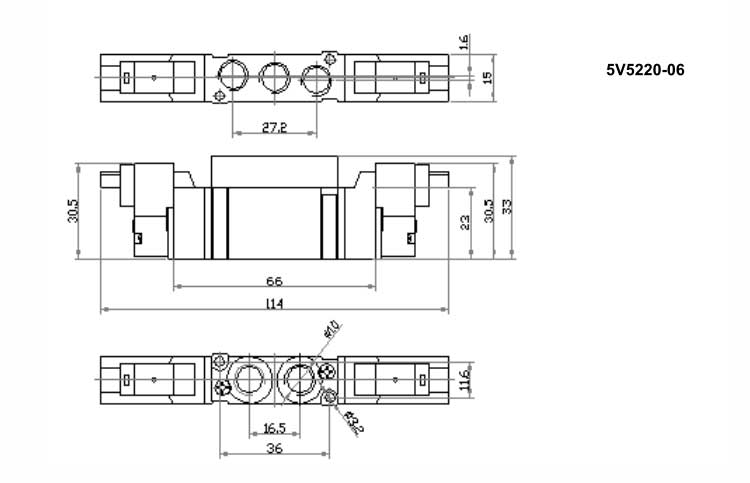

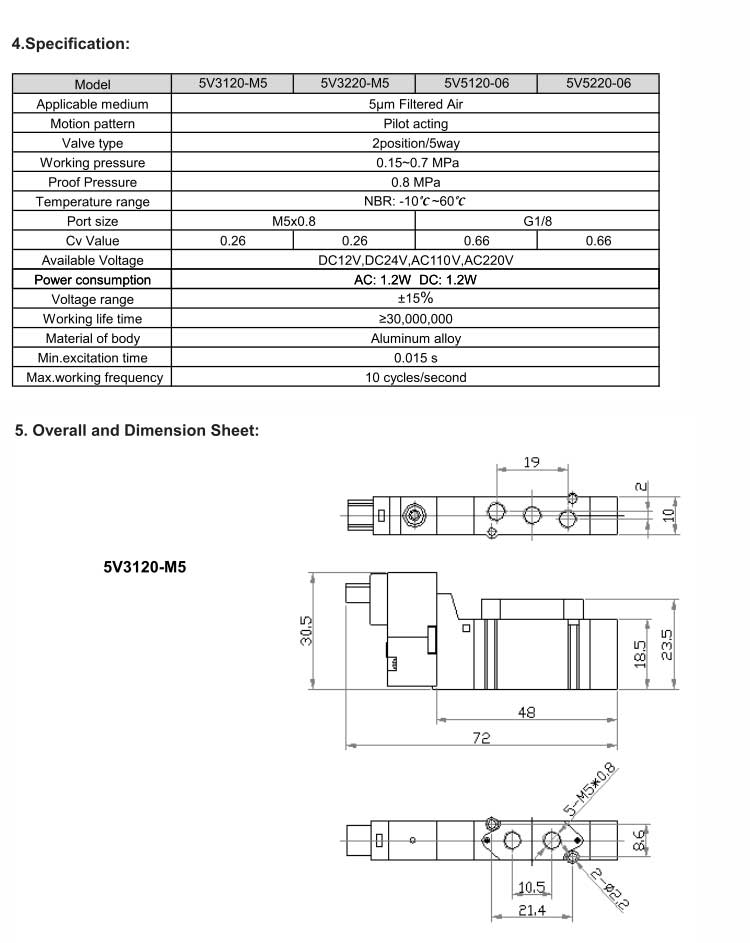

Dimension
Details

5V3120,5V3220,5V5120,5V5220 Series Solenoid Valve

Tags: Pneumatic Solenoid Valve Pneumatic Components industrial automation 5 ports and 2 positions pneumatic actuators top manufacturing industries custom automated mechanical machines pneumatic products corporation fast switching response 5V5220
