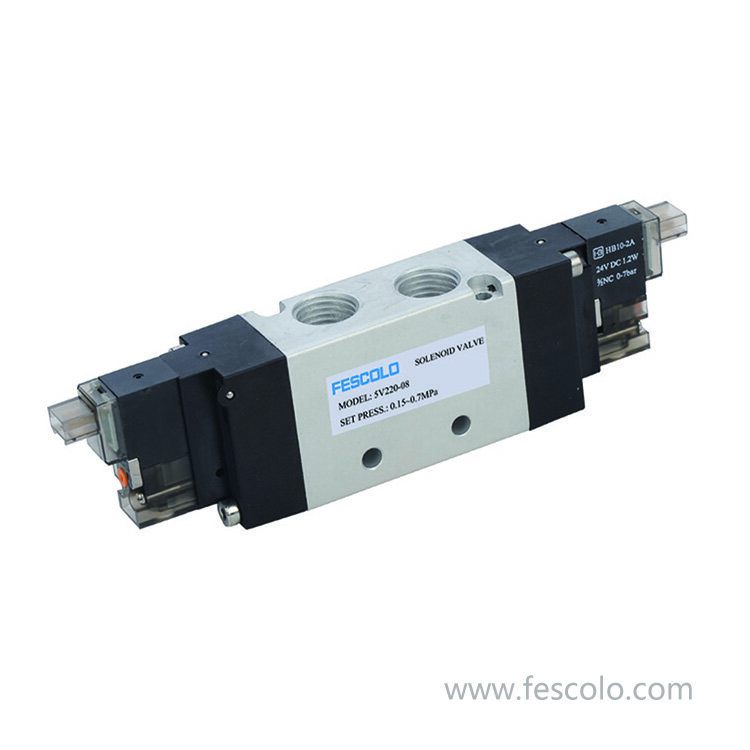

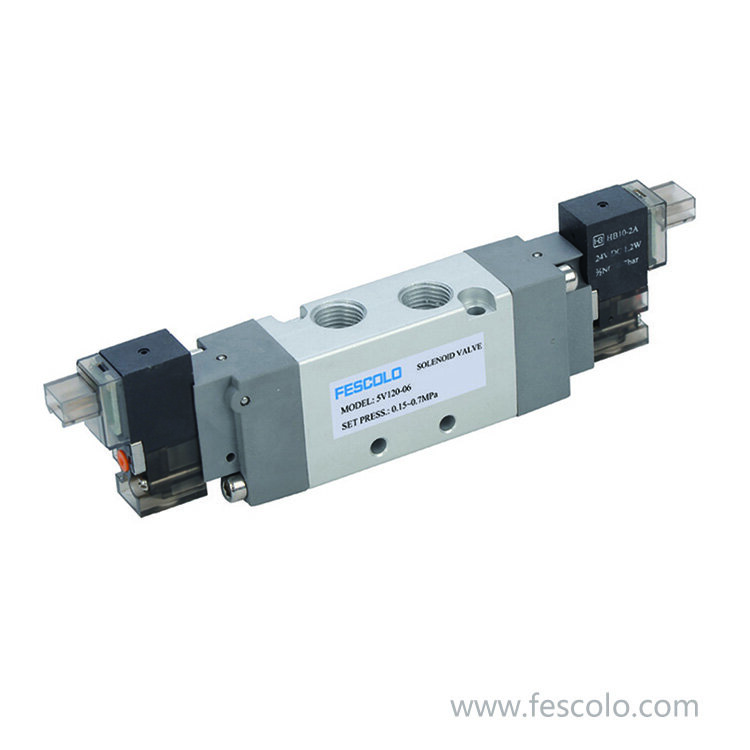

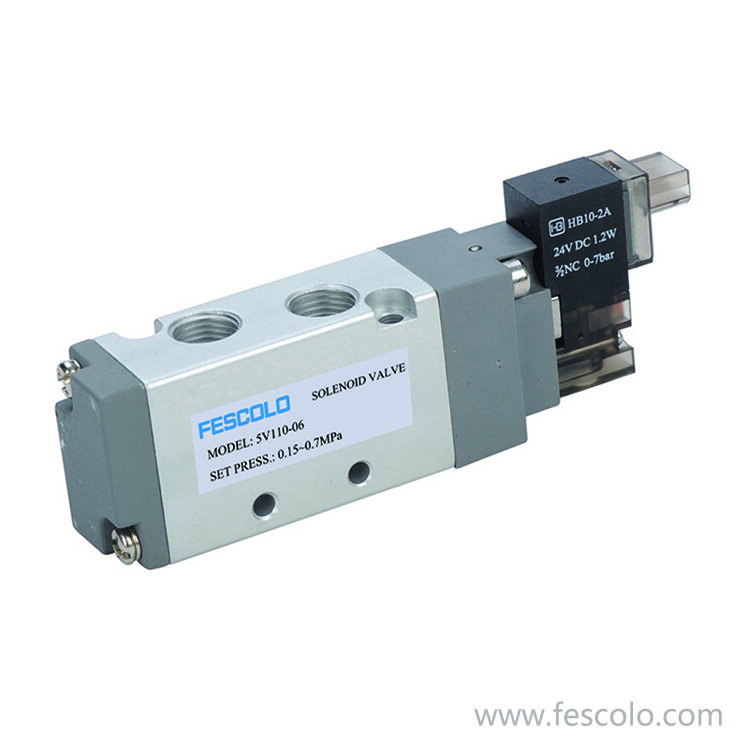

5V Series 2positions/3ways or 2positions/5ways Solenoid Valve

5V Series 2positions/3ways or 2positions/5ways Solenoid Valve

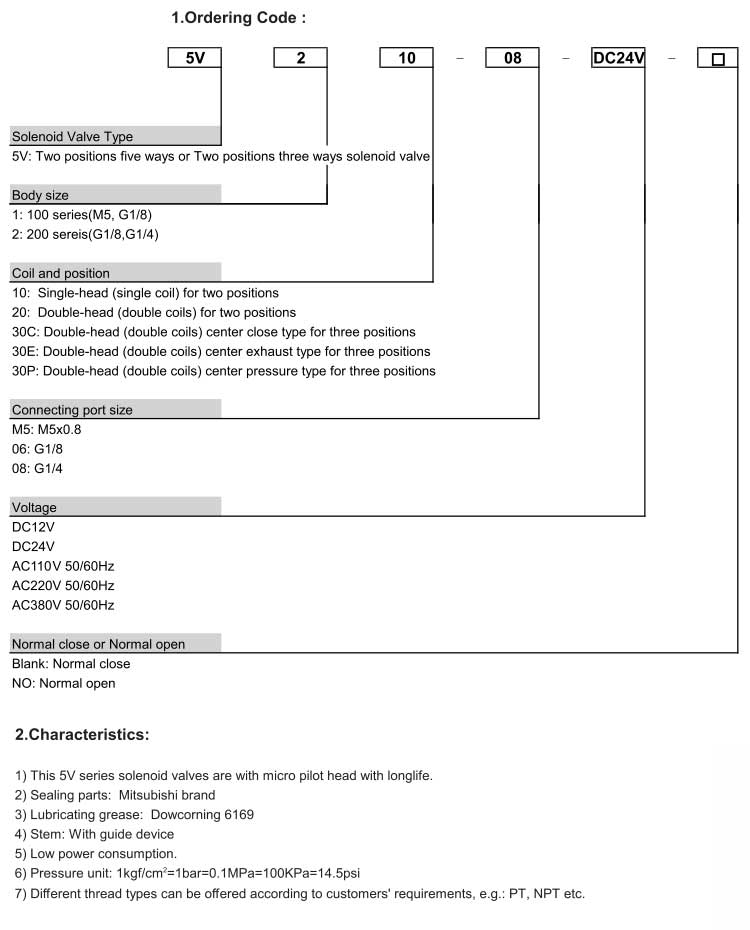

Features:

◆ The 5V series solenoid valve uses a miniature pilot valve head for long service life.

◆ Seals: Mitsubishi brand.

◆ Lubricant: Dowcorning 6169.

◆ Valve stem: Equipped with a guide device.

◆ Low power consumption.

◆ Pressure units: 1 kgf/cm² = 1 bar = 0.1 MPa = 100 kPa = 14.5 psi.

◆ Different thread types, such as PT, NPT, etc., can be provided according to customer requirements.




5V Series 2 positions/3 ways or 2 positions/5 ways Solenoid Valve is a high-performance Pneumatic Solenoid Valve designed for precise control of compressed air in industrial pneumatic systems. Engineered with low power consumption in mind, this series offers energy-saving operation without compromising speed or reliability.


Built for use in automated machinery, robotics, and air-driven systems, the 5V Series features a compact structure, quick response time, and long cycle life. Its efficient electromagnetic coil design reduces electricity usage, making it ideal for applications where energy efficiency and stable performance are critical.


Inquire Now

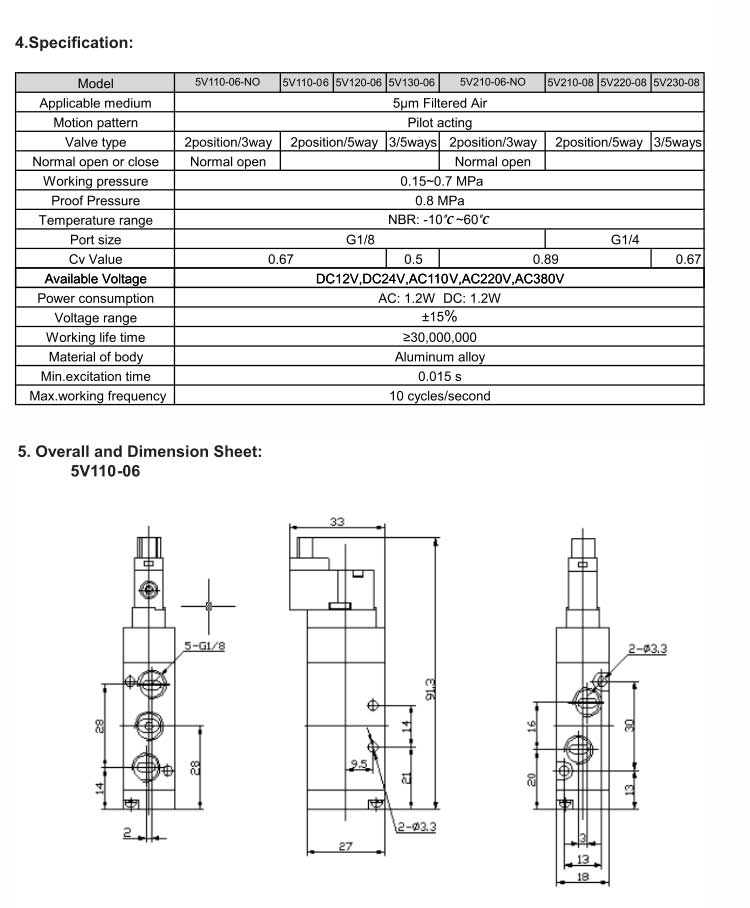

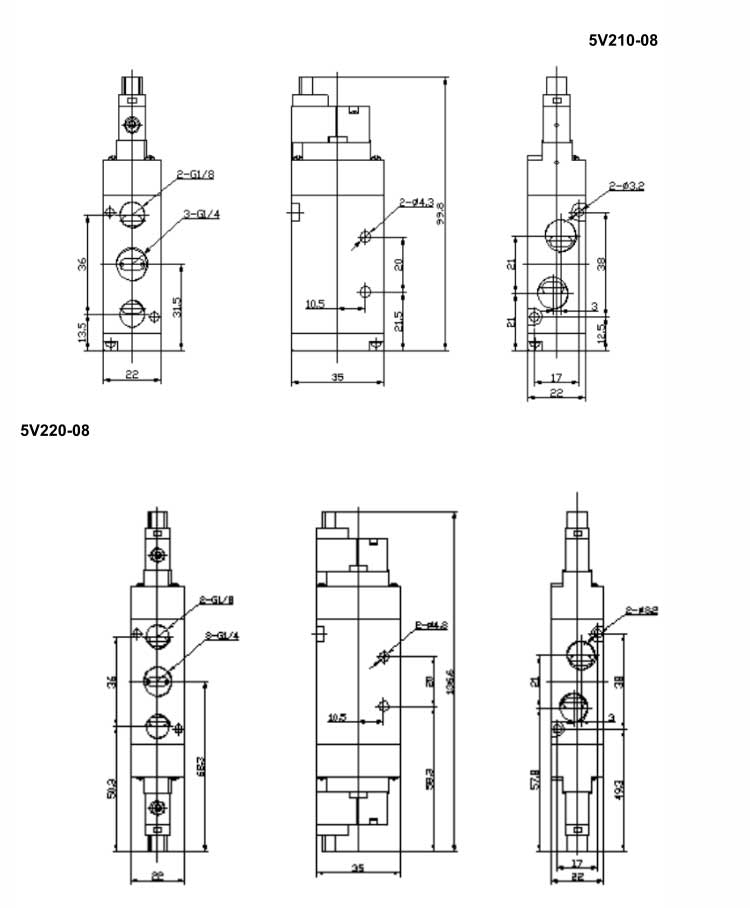

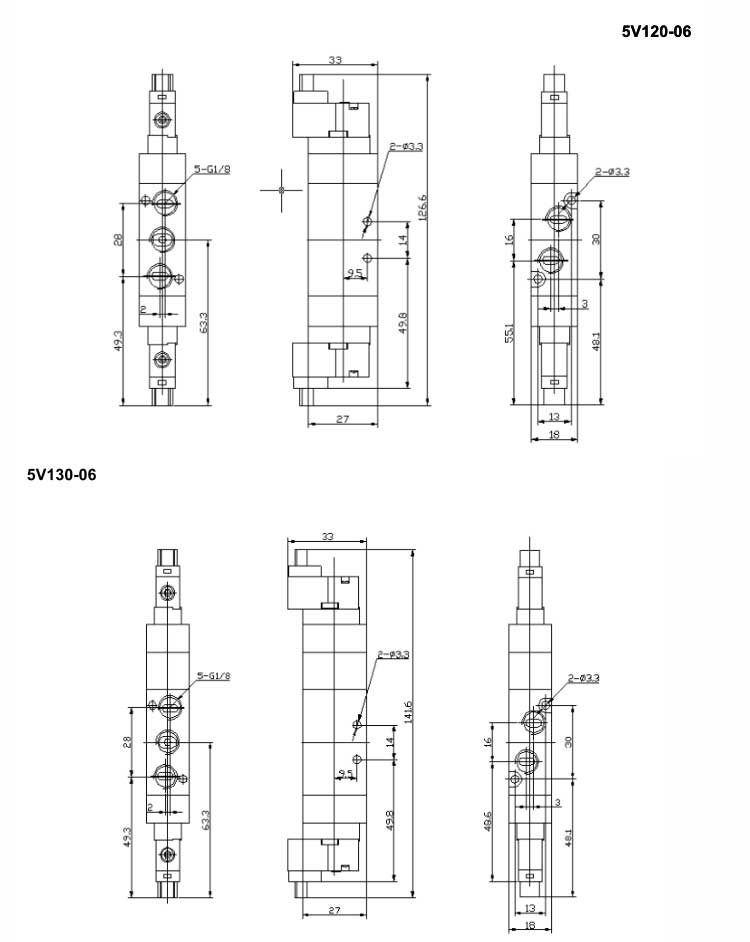

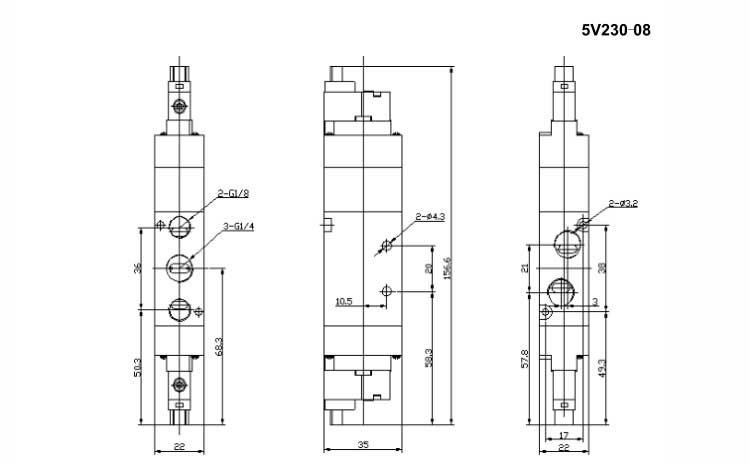

  • Dimension
  • Details

5V Series 2positions/3ways or 2positions/5ways Solenoid Valve

5V Series 2positions/3ways or 2positions/5ways Solenoid Valve

5V Series 2positions/3ways or 2positions/5ways Solenoid Valve

5V Series 2positions/3ways or 2positions/5ways Solenoid Valve

5V Series 2positions/3ways or 2positions/5ways Solenoid Valve
