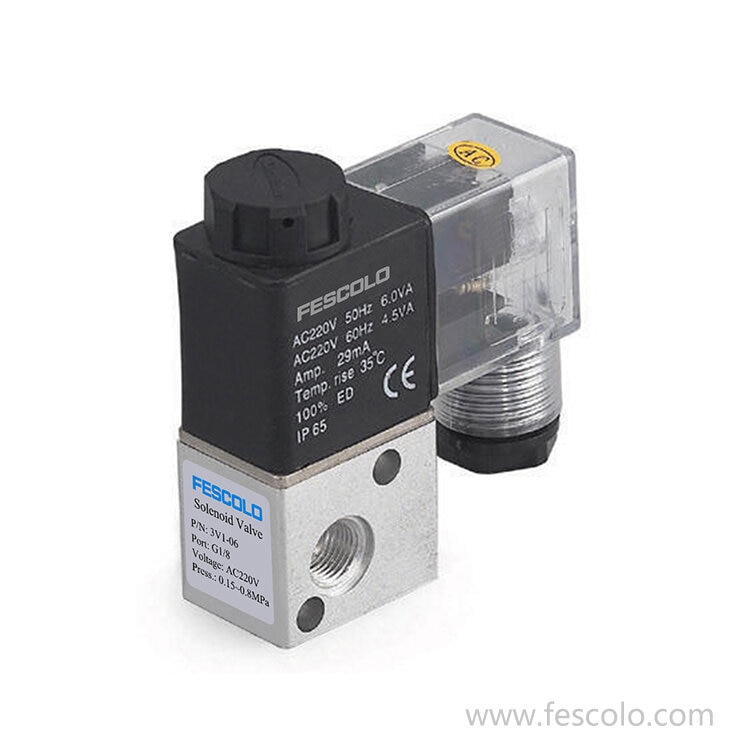

3V1 Series Solenoid Valve

Features:

◆ The protection rating for this series of solenoid valves is IP65.

◆ Coils with different voltages are available.

◆ Pressure units: 1 kgf/cm² = 1 bar = 0.1 MPa = 100 kPa = 14.5 psi.

◆ Lead wire type is available; please specify when ordering.

◆ Different thread types, such as PT, NPT, etc., can be provided according to customer requirements.

The 3V1 Series Solenoid Valve is a compact 3-way 2-position pneumatic valve designed for precise control of airflow in automation systems. Ideal for tight spaces, this valve is often used for pilot control or signal switching in pneumatic circuits.

Its lightweight and miniature body make it perfect for small pneumatic devices, while its fast response time ensures accurate and efficient operation. The 3V1 series is known for low power consumption, easy wiring, and reliable sealing performance, which help reduce energy usage and maintenance efforts.

Common applications include automatic machinery, pneumatic instrumentation, and robotics systems that demand compact and efficient control components.

Inquire Now

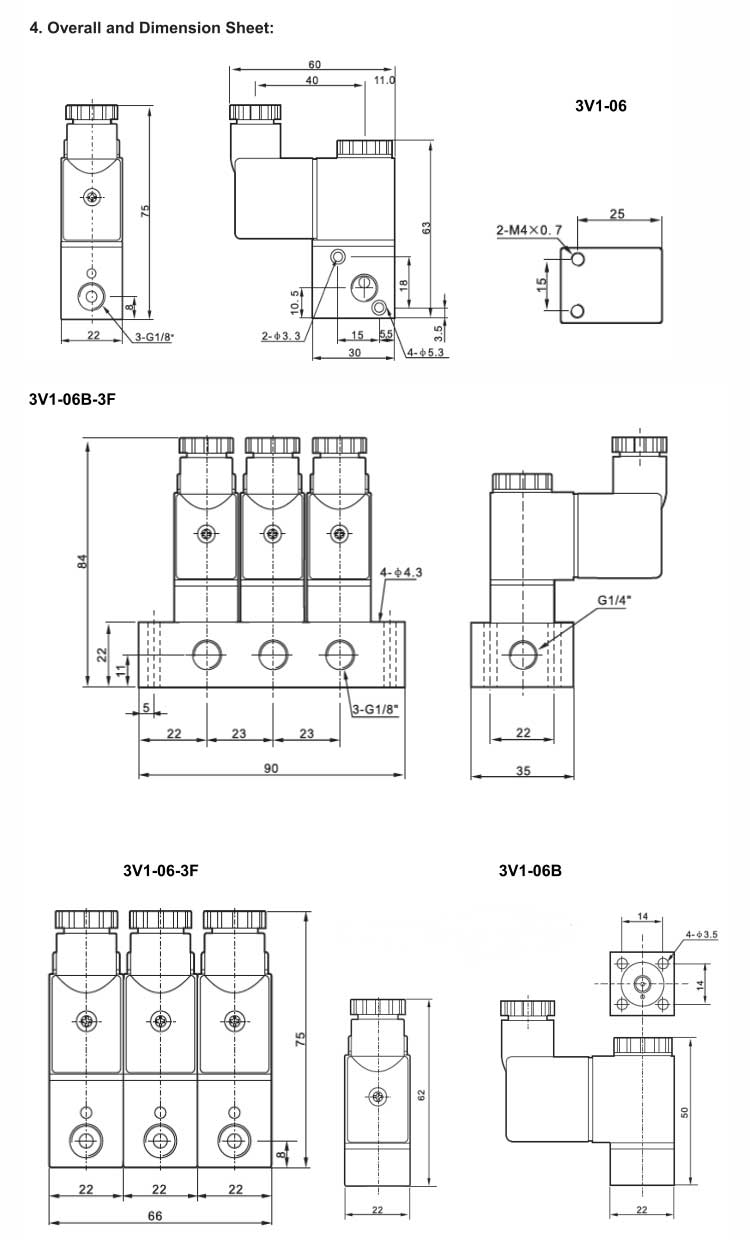

Dimension
Details

3V1 Series Solenoid Valve
