2V025 Series Solenoid Valve

Features:

◆ This series of solenoid valves has an IP65 protection rating.

◆ Coils with different voltages are available.

◆ Pressure units: 1 kgf/cm² = 1 bar = 0.1 MPa = 100 kPa = 14.5 psi.

◆ Lead-wire type is available as an option; please specify when ordering.

◆ Different thread types, such as PT, NPT, etc., can be provided according to customer requirements.

The 2V025 Series Solenoid Valve is a compact, high-precision 2-way, 2-position valve designed for controlling air, water, or light oil in automated systems. Known for its small size, fast response, and energy-saving design, this valve is widely used in laboratory equipment, medical devices, fluid control systems, and pneumatic automation lines.

Built with stainless steel or brass body options, and NBR, EPDM, or VITON seals, it ensures excellent compatibility with various media and working conditions. The low power consumption coil makes it ideal for systems that require continuous operation without overheating.

Inquire Now

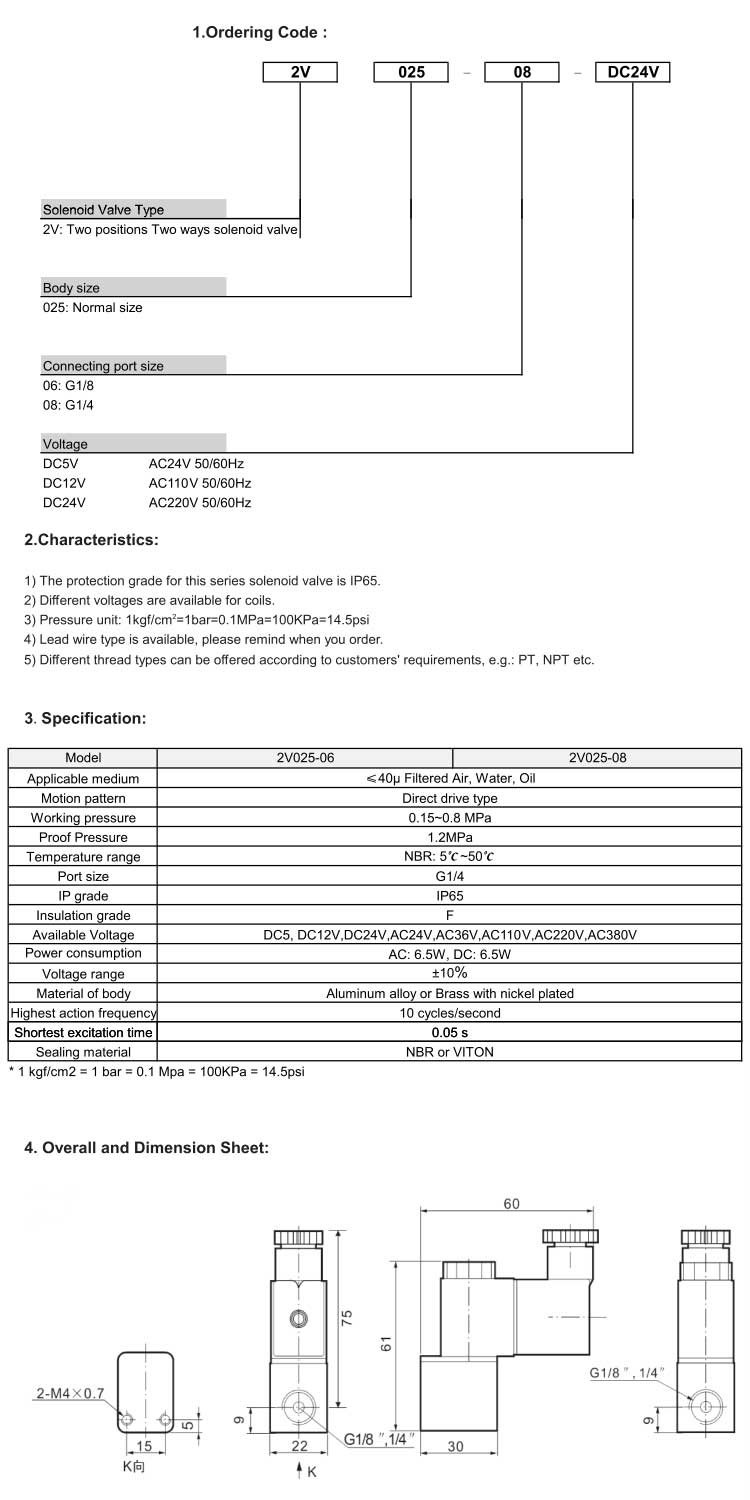

Dimension
Details

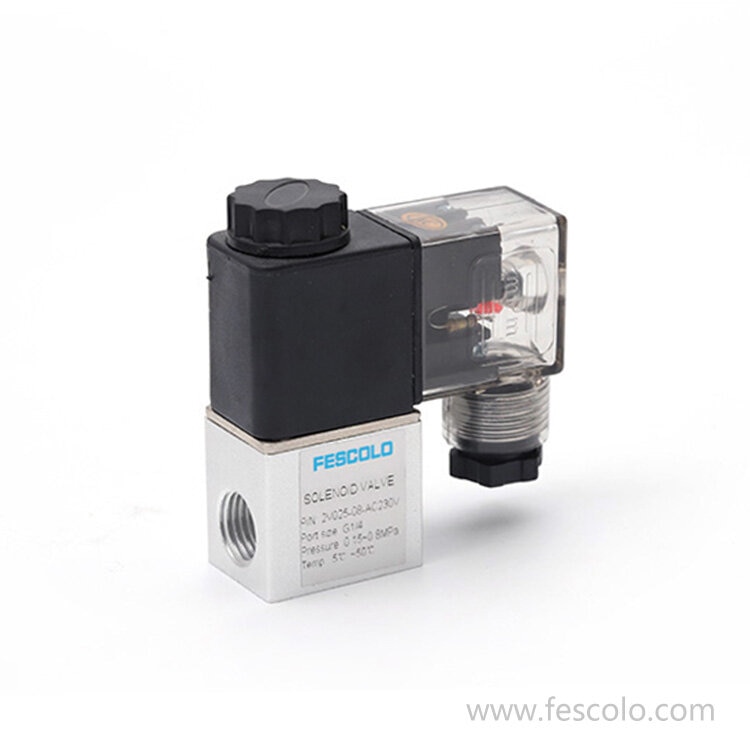

2V025 Series Solenoid Valve
