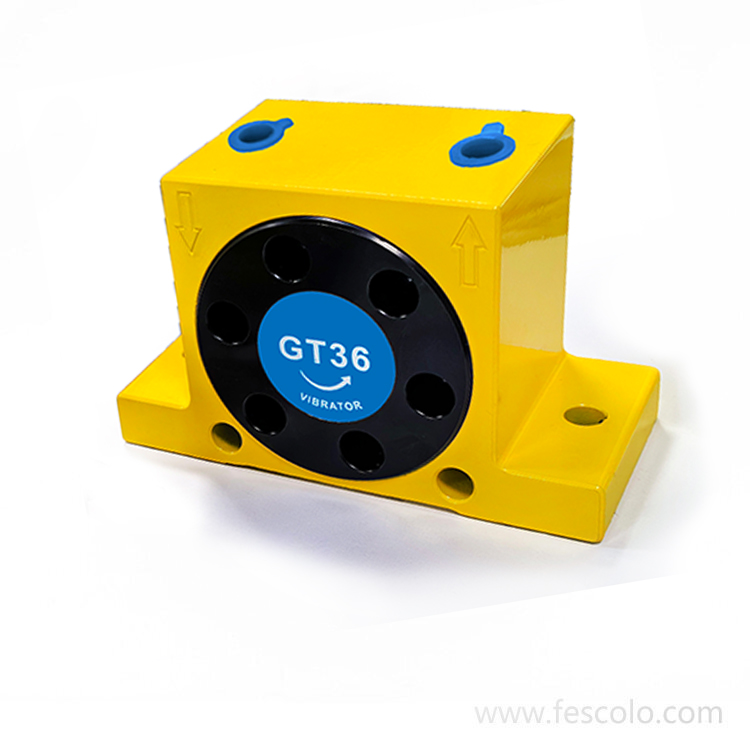

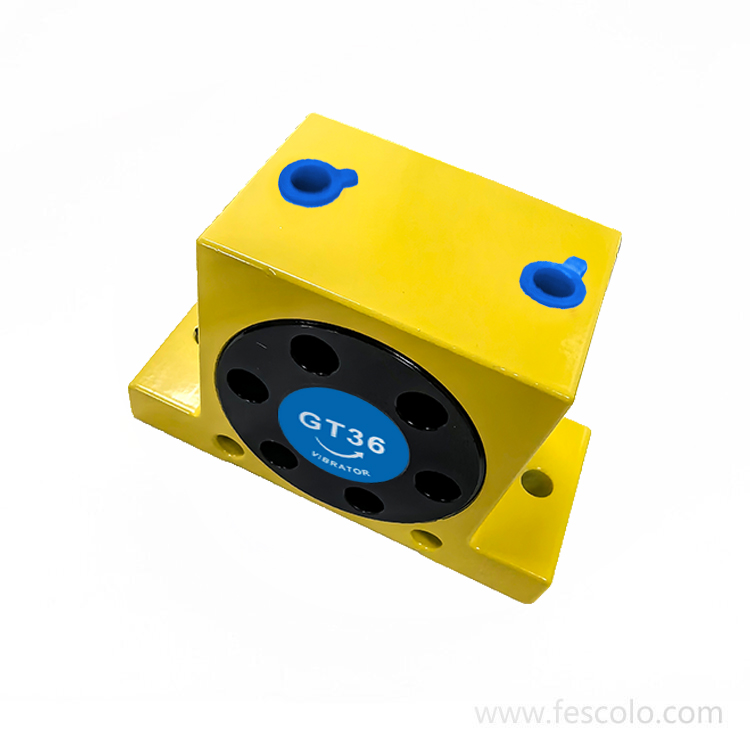

GT Series Pneumatic Gear Vibrator

Characteristics:

◆ Vibration intensity can be adjusted according to air pressure.

◆ Immediate start/stop capability.

◆ Fast speed, low noise, strong vibration force, and safe operation.

Applications:

◆ Feed conveyors, vibrating screens, vibrating hoppers, assisting with filling packaging and casting sand mold vibration.

Working Principle:

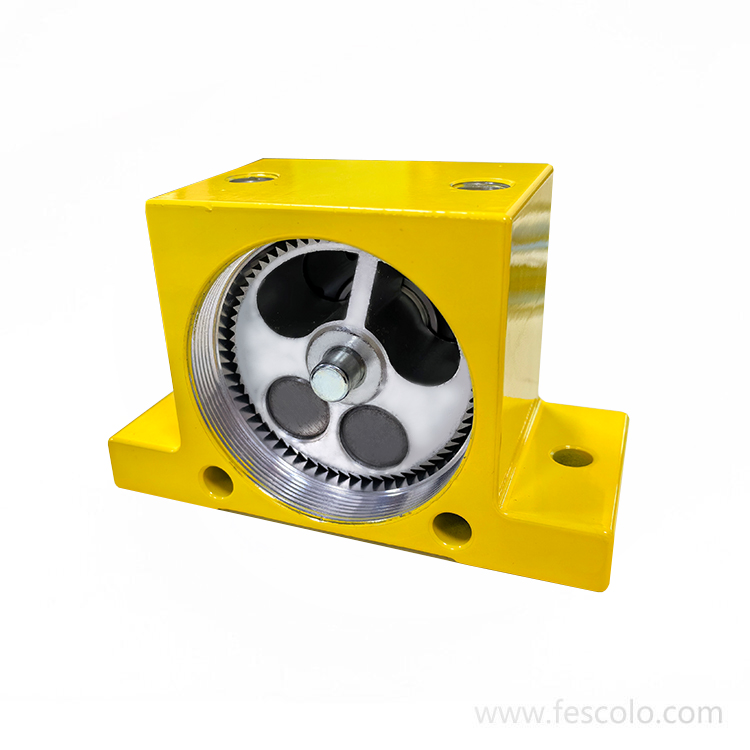

◆ The copper eccentric gear is installed with a counterweight, and air is injected into the gear to drive its rotation.

The centrifugal force from the eccentric rotation of the weight creates vibration. The gear is driven by bearings, resulting in low noise.
