Home > Products > Pneumatic Components > Pneumatic Cylinder and Accessories > CY1L Series Slider Type (Ball bushing bearing) Rodless Cylinder

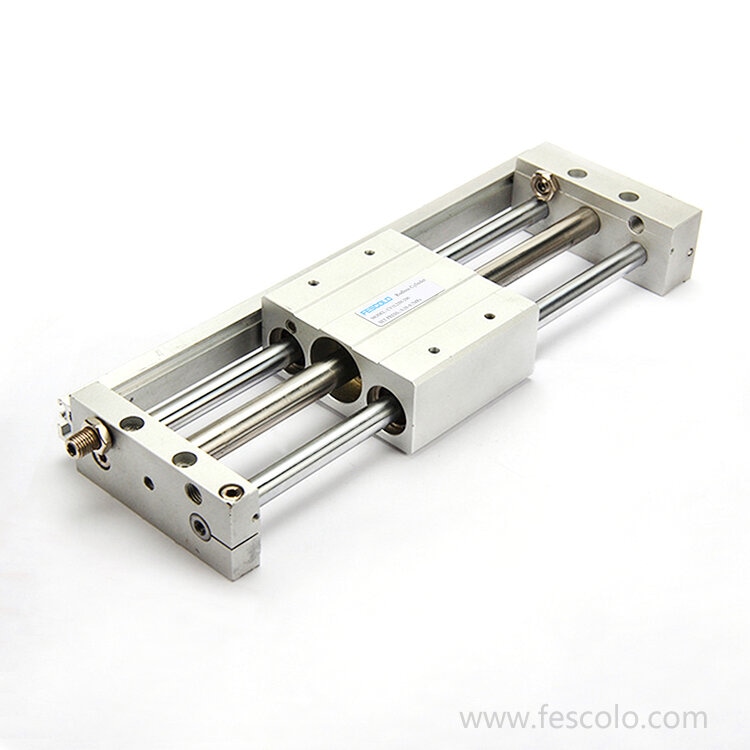

CY1L Series Slider Type (Ball bushing bearing) Rodless Cylinder

CY1L Series Slider Type (Ball bushing bearing) Rodless Cylinder


Features:

◆ Hollow shaft design with a centralized port on one side for easy piping.

◆ The automatic switch can be installed via a dedicated switch rail.

◆ Can absorb impacts generated at the stroke end during high-speed operation and allows for fine-tuning of the stroke.

◆ Optional NPT and G threads available.



Inquire Now

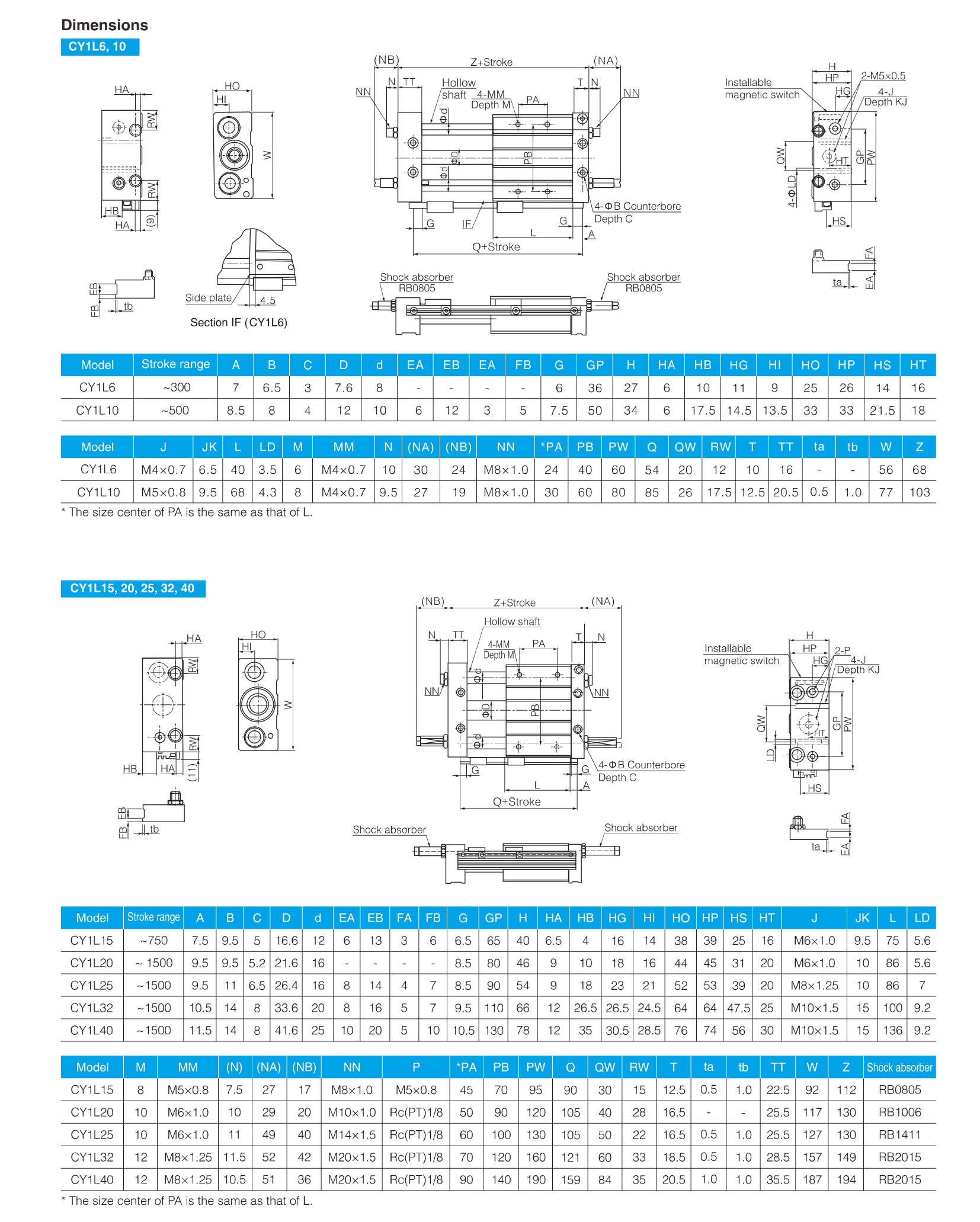

  • Dimension

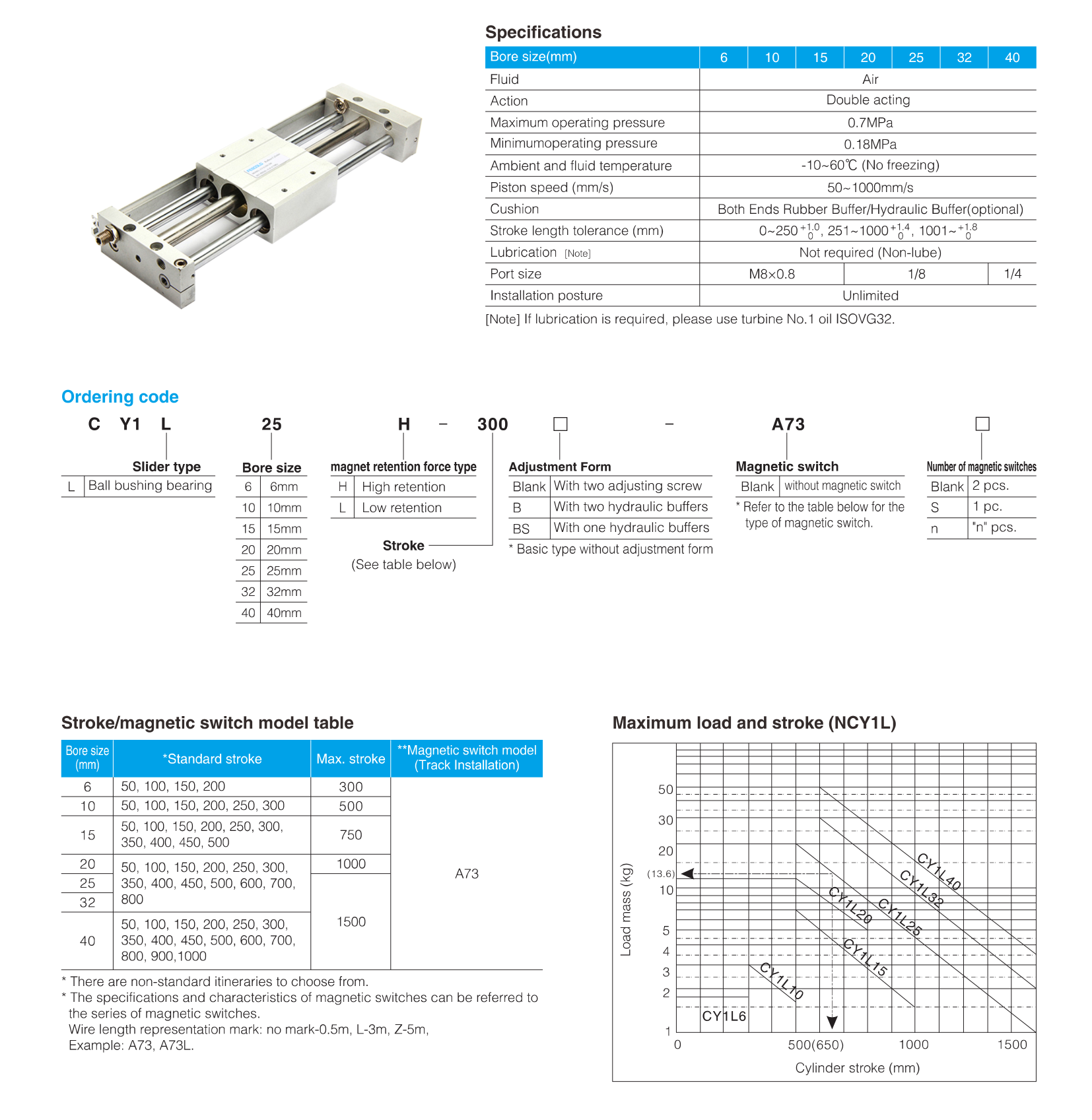

  • Details

CY1L Series Slider Type (Ball bushing bearing) Rodless Cylinder

CY1L Series Slider Type (Ball bushing bearing) Rodless Cylinder
