Characteristic
◆ Extremely pliability and high elasticity
◆ Long working life
◆ Resists abrasion and impact
◆ Resists oil and many chemicals with no erosive nature
◆ Resistance to medium PH4~9
Specification
Materia | Nylon 12 |
Applicable medium | Air, Water, Oil, Solvents, Vacuum |
Embient and fluid temperature | -40℃~+90℃ |
Hardness shore D | 60D |
Water absorption(%) | 0.2 ASTM D-570 |
Tensile strength(kg/cm2) | 510 ASTM D-638 |
Ultimate elongation(%) | 350 ASTM D-638 |
Flexural strength(kg/cm2) | 120 ASTM D-790 |

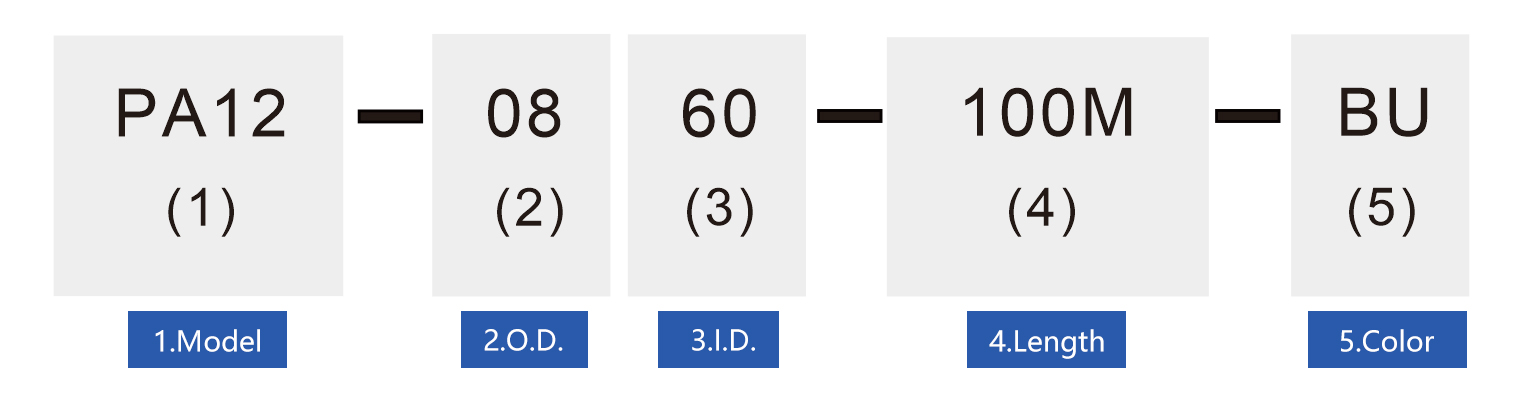

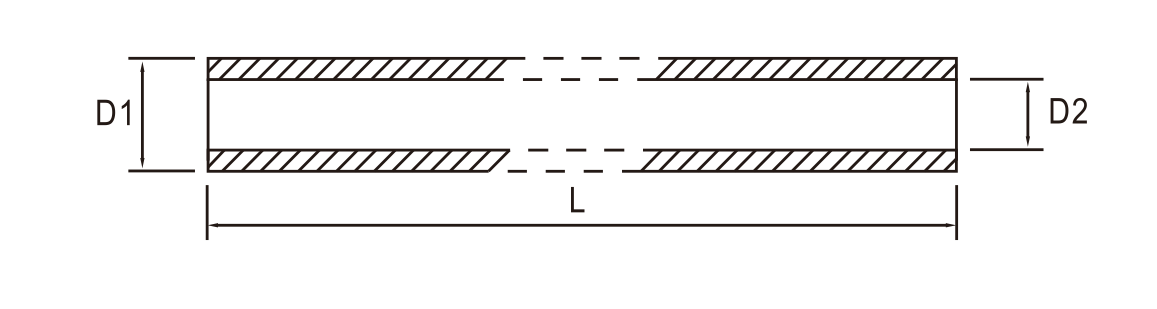

ITEM | D1 | D2 | L | Net weight (kg/Roll) | MAX.working pressure at 20℃ (bar) | Burst.working pressure at 20℃ (bar) | MAX.bend radius at 20℃ (mm) |
PA12-0425 | 4mm | 2.2mm | 200m | 1.6 | 20bar | 60bar | 15mm |
PA12-0640 | 6mm | 4mm | 200m | 3.3 | 20bar | 60bar | 20mm |
PA12-0860 | 8mm | 6mm | 100m | 2.3 | 20bar | 60bar | 30mm |
PA12-1080 | 10mm | 8mm | 100m | 3 | 15bar | 60bar | 45mm |
PA12-1075 | 10mm | 7.5mm | 100m | 3.6 | 20bar | 60bar | 40mm |
PA12-1210 | 12mm | 10mm | 100m | 3.6 | 15bar | 60bar | 55mm |
PA12-1290 | 12mm | 9mm | 100m | 5.2 | 20bar | 60bar | 50mm |
PA12-1/4 | 6.35mm | 4.2mm | 200m | 3.8 | 20bar | 60bar | 25mm |
PA12-3/8 | 9.5mm | 6.35mm | 100m | 4 | 20bar | 60bar | 40mm |
PA12-1/2 | 12.7mm | 9.7mm | 100m | 5.7 | 20bar | 60bar | 50mm |
