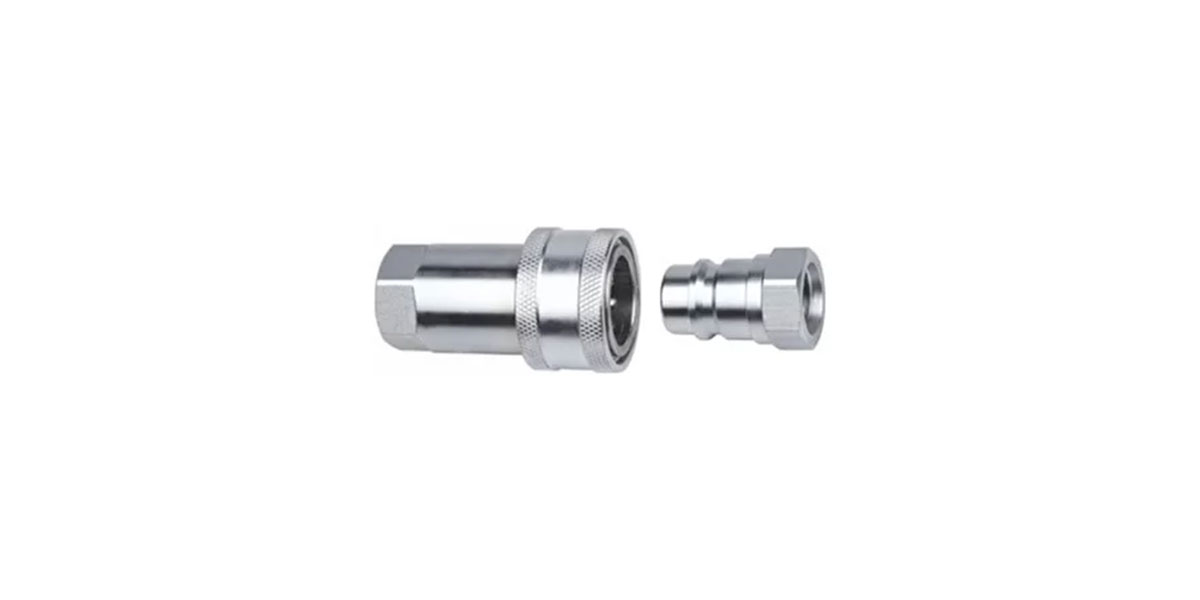

The FK-C1 Ball Valve Type Hydraulic Quick Couplingis specifically designed for high-pressure hydraulic systems, offering exceptional sealing performance and durability.
Its unique ball valve structure ensures smooth fluid flow while preventing leakage, making it an essential component in industrial machinery, construction equipment, and hydraulic systems.
Key Features
◆ Ball Valve Structure
The FK-C1 is designed with a ball valve, offering superior sealing compared to needle or cone valve couplings. This ensures stable fluid control even under high-pressure conditions.
◆ High Pressure Resistance
This coupling can withstand working pressures of several hundred bar, making it ideal for high-load hydraulic drive systems. It ensures stable operation even under extreme conditions.
◆ Premium Materials
Body Material: Typically made from galvanized carbon steel or stainless steel, providing excellent corrosion resistance and mechanical strength.
Seals: Optional materials include nitrile rubber (NBR), fluoroelastomer (FKM), and polytetrafluoroethylene (PTFE), ensuring wear resistance and chemical stability under varying operational conditions.
◆ Quick Connect and Disconnect
Designed for one-handed operation, the FK-C1 offers quick connection and disconnection without the need for additional tools. This boosts efficiency and minimizes downtime.
◆ Excellent Compatibility
The FK-C1 series complies with ISO standards, making it interchangeable with similar quick couplings in the market. It ensures seamless integration into various hydraulic systems.
◆ High Impact Resistance
The robust construction of the FK-C1 ensures that it maintains its seal even under hydraulic shocks or mechanical vibrations, preventing loosening or leakage.
Applications
The FK-C1 ball valve type hydraulic quick coupling is widely used in the following industries:
◆ Construction Machinery
Excavators, loaders, bulldozers, cranes, and other machinery with hydraulic systems that require frequent connection and disconnection.
◆ Industrial Hydraulic Equipment
Hydraulic presses, power units, and testing equipment.
◆ Agricultural Machinery
Tractors, harvesters, and sprayers with hydraulic systems.
◆ Oil and Gas Industry
Hydraulic-driven equipment and fluid transfer systems requiring high-performance couplings.
◆ Marine and Offshore Equipment
Deck machinery and hydraulic lifting systems that require corrosion-resistant hydraulic connections.
Usage Guidelines
◆ Proper Installation
Ensure that the hydraulic system is depressurized before connecting or disconnecting the coupling. Check seals for wear to prevent leaks.
◆ Avoid Over-Pressurization
The FK-C1 coupling is designed for specific pressure ranges. Continuous use under overpressure conditions may compromise sealing performance and reduce service life.
◆ Regular Maintenance
Clean the coupling regularly to prevent dirt and debris from entering the hydraulic system and affecting performance.
◆ Select the Correct Seal Material
Choose the appropriate seal material based on the operating environment. For high-temperature applications, FKM seals provide better heat resistance.
Types of FK-C1 Ball Valves Type Hydraulic Quick Coupling
