Characteristic
◆ Excellent resistance to strong acid and bases
◆ Excellent resistance to high and low temperature
◆ Good chemical resistance stability
◆ Maintains elasticity under low temperature
◆ Long working life
◆ With excellent flexibility and restoring force
Specification
Material | Polytetrafluoro Ethylene |
Applicable medium | Strong acid, Strong bases, Oil |
Embient and fluid temperature | -80℃~+260℃ |

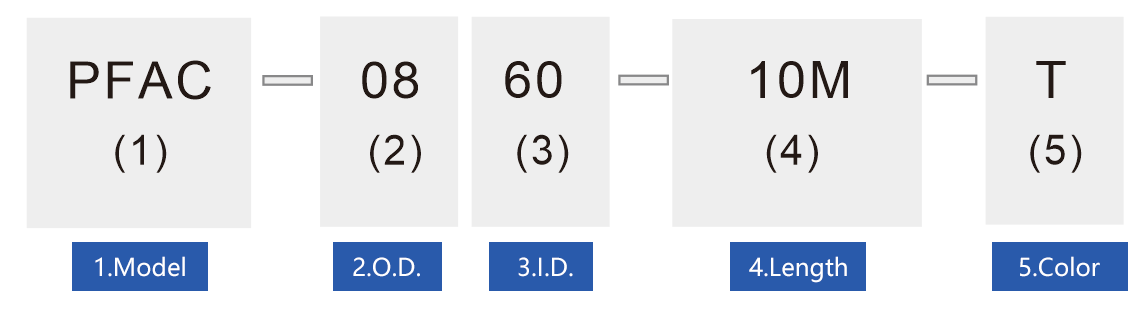

Ordering code

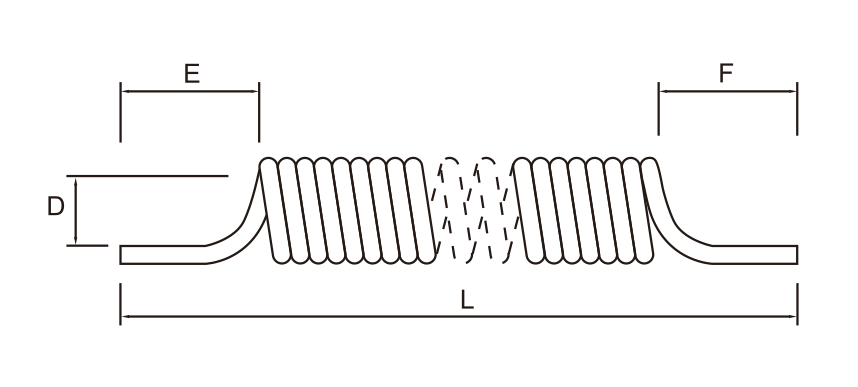

ITEM | D | Maximum Length (L) | E | F |
PFAC-0420 | 32mm | 1-15m | 80mm | 80mm |
PFAC-0640 | 38mm | 1-15m | 80mm | 80mm |
PFAC-0860 | 48mm | 1-20m | 80mm | 80mm |
PFAC-1080 | 58mm | 3-20m | 80mm | 80mm |
PFAC-1290 | 68mm | 3-20m | 80mm | 80mm |
PFAC-1/4 | 38mm | 1-15m | 80mm | 80mm |
PFAC-3/8 | 58mm | 3-20m | 80mm | 80mm |
