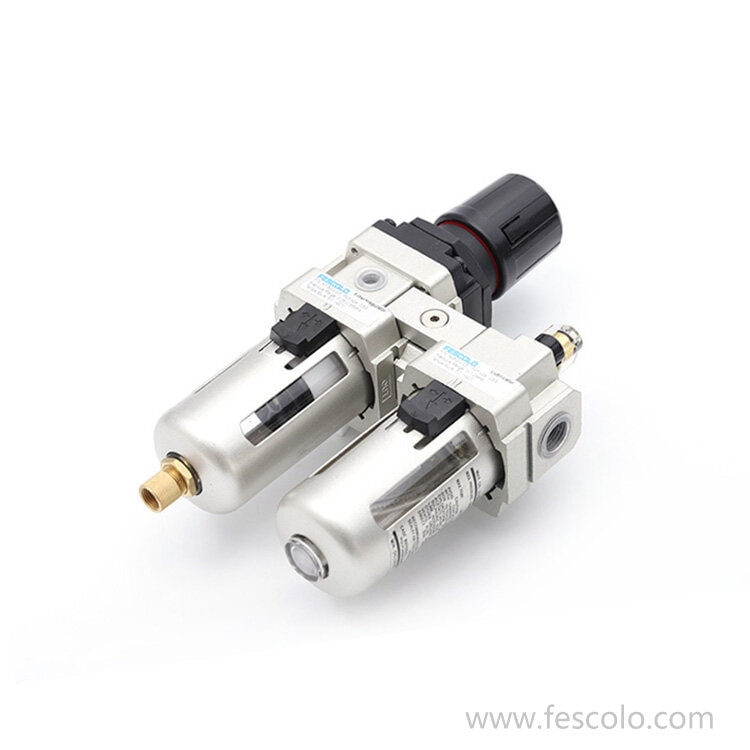

AC Series FR.L Combination

Features:

◆ The AC series consists of AW and AL, with each unit available for separate ordering.

◆ This unit separates moisture and cleans fluid oil, condensates, and dirt particles from compressed air.

For special applications, the standard 40μm filter element can easily be replaced with 25μm or 5μm filter elements.

The AW maintains a constant working pressure input despite fluctuations in pipeline pressure and air consumption.

◆ The proportional lubricator adds a specific amount of oil to the filtered air.

The oil mist content is proportional to the flow and oil quantity and can be replenished during operation.

The oil drip rate is controlled by an adjustable bolt. Normally, 1 to 12 drops per 1000L of air are sufficient.

◆ Different thread types, such as PT and NPT, are available upon customer request.
